<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: WMI Event Log Sensor

The WMI Event Log sensor monitors a specific Windows logfile using Windows Management Instrumentation (WMI).

  • It shows the number of new records per second.

You can set the sensor to a desired status individually according to a new event log entry. For details and how to find out the correct filter, see section More.

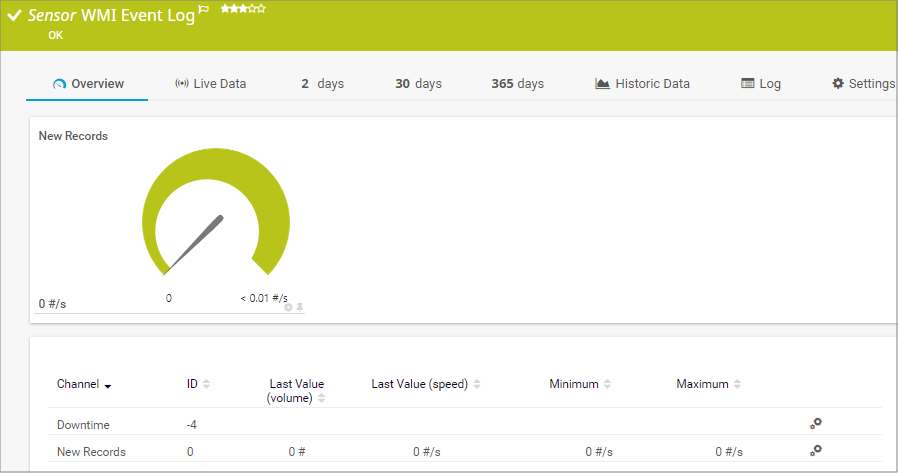

WMI Event Log Sensor

WMI Event Log Sensor

Click here to enlarge: http://media.paessler.com/prtg-screenshots/wmi_event_log.png

Remarks

  • Requires credentials for Windows systems to be defined for the device you want to use the sensor on.
  • Sensors using the Windows Management Instrumentation (WMI) protocol have high impact on the system performance! Try to stay below 200 WMI sensors per probe. Above this number, please consider using multiple Remote Probes for load balancing.
  • For a general introduction to the technology behind WMI, please see manual section Monitoring via WMI.

icon-prtg-on-demandYou cannot add this sensor type to local probes in PRTG on demand. If you want to use this sensor type, please add it to a remote probe device.

Add Sensor

The Add Sensor dialog appears when you manually add a new sensor to a device. It only shows the setting fields that are required for creating the sensor. Therefore, you will not see all setting fields in this dialog. You can change (nearly) all settings in the sensor's Settings tab later.

Select the log files you want to monitor. PRTG creates one sensor for each log you choose in the Add Sensor dialog. The settings you choose will be valid for all sensors that you create when you finish this dialog.

The following settings for this sensor differ in the Add Sensor dialog in comparison to the sensor's settings page.

WMI Event Log Monitor

Log File

The Windows event log provides several different logfiles. You see a list with the names of all items that are available to monitor. Add check marks in front of the respective lines to select the desired items. PRTG creates one sensor for each selection. You can also use the check box in the table head to select and deselect all items.

Sensor Settings

On the details page of a sensor, click the Settings tab to change its settings.

icon-i-roundUsually, a sensor connects to the IP Address or DNS Name of the parent device where you created this sensor. See the Device Settings for details. For some sensor types, you can define the monitoring target explicitly in the sensor settings. Please see below for details on available settings.

Basic Sensor Settings

Sensor Name

Enter a meaningful name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

Parent Tags

Shows Tags that this sensor inherits from its parent device, group, and probe. This setting is shown for your information only and cannot be changed here.

Tags

Enter one or more Tags, separated by spaces or commas. You can use tags to group sensors and use tag–filtered views later on. Tags are not case sensitive. We recommend that you use the default value.

You can add additional tags to the sensor if you like. Other tags are automatically inherited from objects further up in the device tree. These are visible above as Parent Tags.

Priority

Select a priority for the sensor. This setting determines where the sensor is placed in sensor lists. Top priority is at the top of a list. Choose from one star (low priority) to five stars (top priority).

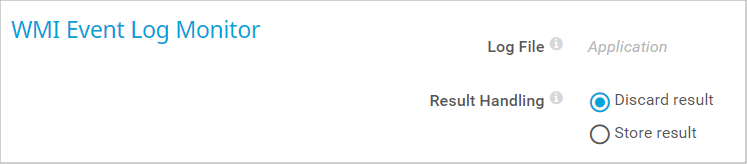

WMI Event Log Monitor

Log File

Shows the Windows logfile that this sensor monitors. Once a sensor is created, you cannot change this value. It is shown for reference purposes only. If you need to change this, please add the sensor anew.

Sensor Result

Define what PRTG will do with the sensor results. Choose between:

  • Discard sensor result: Do not store the sensor result.
  • Write sensor result to disk (Filename: "Result of Sensor [ID].txt"): Store the last result received from the sensor to the Logs (Sensor) directory in the PRTG data folder on the probe system the sensor is running on (on the Master node if in a cluster). File names: Result of Sensor [ID].txt and Result of Sensor [ID].Data.txt. This is for debugging purposes. PRTG overrides these files with each scanning interval.
    icon-book-arrowsFor more information on how to find the folder used for storage, see section Data Storage.


icon-prtg-on-demandYou cannot access stored logs of sensors that run on the local probe of PRTG on demand.

Filter Event Log Entries

Event Type

Specify the type of event that this sensor processes. Other event types cannot be processed. Choose between the following event types:

  • Any
  • Error
  • Warning
  • Information
  • Security Audit Success
  • Security Audit Failure

Filter by Source

Filter all received events for a certain event source. If you enable this option, this sensor only processes messages that match the defined value. Choose between:

  • Off: Do not filter by event source.
  • On: Enable filtering by event source.

Match String (Event Source)

This field is only visible if you enable source filtering above. Enter the source that the events come from. Only events from a source matching this string are regarded, other events are ignored. Please enter a string.

Filter by ID

Filter all received events for a certain event ID. If you enable this option, this sensor processes only messages that match the defined value(s). Choose between:

  • Off: Do not filter by event ID.
  • On: Enable filtering by event ID.

Match Values (Event ID)

This field is only visible if you enable ID filtering above. Enter an event ID that the events must have. Only events with an ID that matches this value are regarded.

icon-i-roundThe Event Log (Windows API) Sensor supports more than one event ID. Using this sensor type, you can enter a comma separated list of event IDs to filter for more than one ID.

icon-i-roundThe WMI Event Log Sensor supports filtering for only one ID.

Filter by Category

Filter all received events for a certain event category. If you enable this option, this sensor only processes messages that match the defined value. Choose between:

  • Off: Do not filter by event category.
  • On: Enable filtering by event category.

Match String (Event Category)

This field is only visible if you enable category filtering above. Enter a category that the events must have. Only events with a category that matches this string are regarded. Please enter a string.

Filter by User

Filter all received events for a certain event user. If you enable this option, this sensor only processes messages that match the defined value. Choose between:

  • Off: Do not filter by event user.
  • On: Enable filtering by event user.

Match String (Event User)

This field is only visible if you enable user filtering above. Enter a username that the events must to be assigned to. Only events with a username that matches this string are regarded. Please enter a string.

Filter by Computer

Filter all received events for a certain event computer. If you enable this option, this sensor only processes messages that match the defined value. Choose between:

  • Off: Do not filter by event computer.
  • On: Enable filtering by event computer.

Match String (Event Computer)

This field is only visible if you enable computer filtering above. Enter a computer name that the events must be assigned to. Only events with a computer name that matches this string are regarded. Please enter a string.

Filter by Message

Filter all received events for a certain event message. If you enable this option, this sensor only processes messages that match the defined value. Choose between:

  • Off: Do not filter by event message.
  • On: Enable filtering by event message.

Match String (Event Message)

This field is only visible if you enable message filtering above. Enter a message that the event must contain. Only events with a message matching this string are regarded. Please enter a string.

icon-i-roundFor the WMI Event Log Sensor, you can use the percent sign (%) as placeholder for any or no character (as known from the asterisk sign (*) in Windows search) in combination with a substring. For example, you can enter %RAS% for any event source containing the string RAS.

Sensor Display

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel will always be displayed below the sensor's name. The available options depend on what channels are available for this sensor.

icon-i-roundYou can set another primary channel later by clicking the pin symbol of a channel in the sensor's Overview tab.

Graph Type

Define how different channels will be shown for this sensor.

  • Show channels independently (default): Show an own graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This will generate an easy-to-read graph that visualizes the different components of your total traffic.
    icon-i-roundThis option cannot be used in combination with manual Vertical Axis Scaling (available in the Sensor Channels Settings settings).

Stack Unit

This setting is only available if stacked graphs are selected above. Choose a unit from the list. All channels with this unit will be stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all following settings are inherited from objects higher in the hierarchy and should be changed there, if necessary. Often, best practice is to change them centrally in the Root group's settings. To change a setting only for this object, disable inheritance by clicking the check mark in front of the corresponding setting name. You will then see the options described below.

Scanning Interval

Scanning Interval

Select a scanning interval (seconds, minutes, or hours) from the list. The scanning interval determines the time the sensor waits between two scans. You can change the available intervals in the system administration on PRTG on premises installations.

If a Sensor Query Fails

Define the number of scanning intervals that a sensor has time reach and check a device again in case a sensor query fails. The sensor can try to re-reach and check a device several times, depending on the option you select here, before it will be set to a Down status. This helps you avoid false alarms if the monitored device has only temporary issues. For previous scanning intervals with failed requests, the sensor will show a Warning status. Choose between:

  • Set sensor to "down" immediately: The sensor will show an error immediately after the first failed request.
  • Set sensor to "warning" for 1 interval, then set to "down" (recommended): After the first failed request, the sensor will show a yellow warning status. If the following request also fails, the sensor will show an error.
  • Set sensor to "warning" for 2 intervals, then set to "down": Show an error status only after three continuously failed requests.
  • Set sensor to "warning" for 3 intervals, then set to "down": Show an error status only after four continuously failed requests.
  • Set sensor to "warning" for 4 intervals, then set to "down": Show an error status only after five continuously failed requests.
  • Set sensor to "warning" for 5 intervals, then set to "down": Show an error status only after six continuously failed requests.

icon-i-roundSensors that monitor via Windows Management Instrumentation (WMI) always wait at least one scanning interval until they show an error. It is not possible to set a WMI sensor to "down" immediately, so the first option will not apply to these sensor types. All other options can apply.

icon-i-roundIf a sensor has defined error limits for channels, it will always show a Down status immediately, so no "wait" option will apply.


icon-i-roundIf a channel uses lookup values, it will always show a Down status immediately, so no "wait" options will apply.

Schedules, Dependencies, and Maintenance Window

icon-i-roundInheritance for schedules, dependencies, and maintenance windows cannot be interrupted. The corresponding settings from the parent objects will always be active. However, you can define additional settings here. They will be active at the same time as the parent objects' settings.

Schedule

Select a schedule from the list. Schedules can be used to monitor for a certain time span (days, hours) every week. With the period list option it is also possible to pause monitoring for a specific time span. You can create new schedules and edit existing ones in the account settings.

icon-i-roundSchedules are generally inherited. New schedules will be added to existing ones, so all schedules are active at the same time.

Maintenance Window

Specify if you want to set up a one-time maintenance window. During a "maintenance window" period, this object and all child objects will not be monitored. They will be in a paused state instead. Choose between:

  • Not set (monitor continuously): No maintenance window will be set and monitoring will always be active.
  • Set up a one-time maintenance window: Pause monitoring within a maintenance window. You can define a time span for a monitoring pause below and change it even for a currently running maintenance window.

icon-i-roundTo terminate a current maintenance window before the defined end date, change the time entry in Maintenance Ends field to a date in the past.

Maintenance Begins

This field is only visible if you enabled the maintenance window above. Use the date time picker to enter the start date and time of the maintenance window.

Maintenance Ends

This field is only visible if you enabled the maintenance window above. Use the date time picker to enter the end date and time of the maintenance window.

Dependency Type

Define a dependency type. Dependencies can be used to pause monitoring for an object depending on the status of another. You can choose between:

  • Use parent: Pause the current sensor if the device, where it is created on, is in Down status, or is paused by another dependency.
  • Select object: Pause the current sensor if the device, where it is created on, is in Down status, or is paused by another dependency. Additionally, pause the current sensor if a specific other object in the device tree is in Down status, or is paused by another dependency. Select below.
  • Master object for parent: Make this sensor the master object for its parent device. The sensor will influence the behavior of the device, where it is created on: If the sensor is in Down status, the device will be paused. For example, it is a good idea to make a Ping sensor the master object for its parent device to pause monitoring for all other sensors on the device in case the device cannot even be pinged. Additionally, the sensor will be paused if the parent group of its parent device is in Down status, or if it is paused by another dependency.

icon-i-roundTesting your dependencies is easy! Simply choose Simulate Error Status from the context menu of an object that other objects depend on. A few seconds later all dependent objects should be paused. You can check all dependencies in your PRTG installation by selecting Devices | Dependencies from the main menu bar.

Dependency

This field is only visible if the Select object option is enabled above. Click on the reading-glasses and use the object selector to choose an object on which the current sensor will depend.

Dependency Delay (Sec.)

Define a time span in seconds for a dependency delay. After the master object for this dependency goes back to Up status, PRTG will start monitoring the depending objects after this extra delayed. This can help to avoid false alarms, for example, after a server restart, by giving systems more time for all services to start up. Please enter an integer value.

icon-i-round-redThis setting is not available if you choose this sensor to Use parent or to be the Master object for parent. In this case, please define delays in the parent Device Settings or in the superior Group Settings.

Access Rights

User Group Access

Define which user group(s) will have access to the object you're editing. A table with user groups and types of access rights is shown: It contains all user groups from your setup. For each user group you can choose from the following access rights:

  • Inherited: Use the access rights settings of the parent object.
  • None: Users in this group cannot see or edit the object. The object neither shows up in lists nor in the device tree. Exception: If a child object is visible to the user, the object is visible in the device tree, though not accessible.
  • Read: Users in this group can see the object and review its monitoring results.
  • Write: Users in this group can see the object, review its monitoring results, and edit the object's settings. They cannot edit access rights settings.
  • Full: Users in this group can see the object, review its monitoring results, edit the object's settings, and edit access rights settings.

You can create new user groups in the System Administration—User Groups settings. To automatically set all objects further down in the hierarchy to inherit this object's access rights, set a check mark for the Revert children's access rights to inherited option.

For more details on access rights, please see the section User Access Rights.

More

Knowledge Base: My Event Log sensor ignores changes in the event log. What can I do?

Knowledge Base: How can I configure sensors using speed limits to keep the status for more than one interval?

My WMI sensors don't work. What can I do?

Edit Sensor Channels

To change display settings, spike filter, and limits, switch to the sensor's Overview tab and click the gear icon of a specific channel. For detailed information, please see the Sensor Channels Settings section.

Notifications

Click the Notifications tab to change notification triggers. For detailed information, please see the Sensor Notifications Settings section.

Others

For more general information about settings, please see the Object Settings section.
