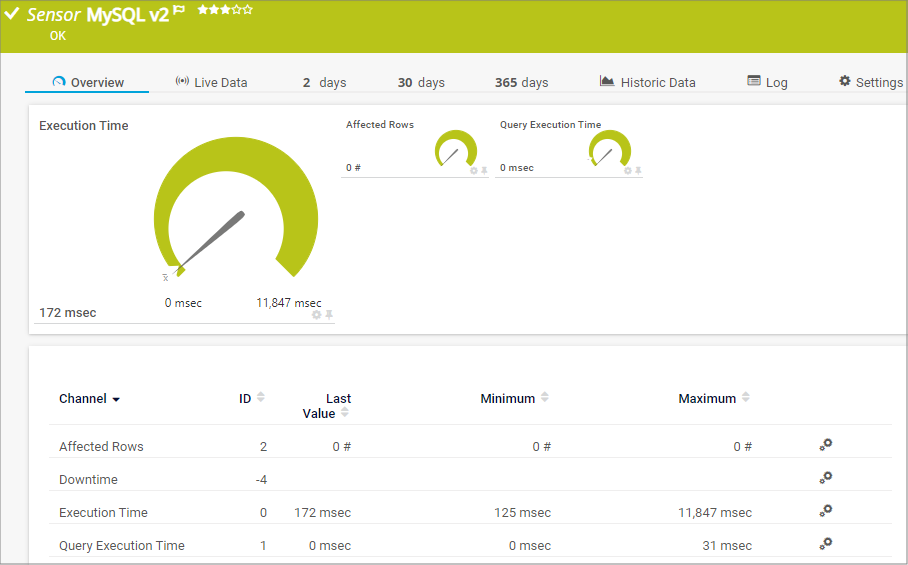

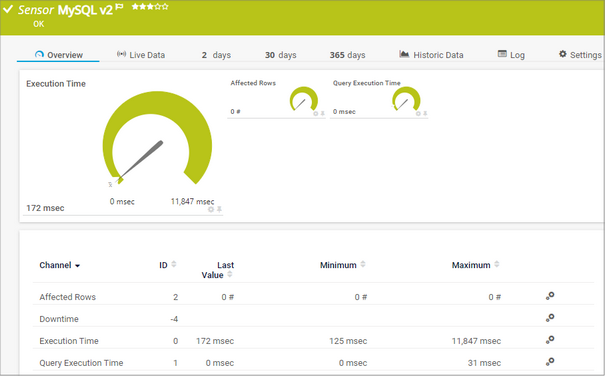

<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: MySQL v2 Sensor

Sensor Name

Enter a meaningful name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

Parent Tags

Shows Tags that this sensor inherits from its parent device, group, and probe. This setting is shown for your information only and cannot be changed here.

Tags

Enter one or more Tags, separated by spaces or commas. You can use tags to group sensors and use tag–filtered views later on. Tags are not case sensitive. We recommend that you use the default value.

You can add additional tags to the sensor if you like. Other tags are automatically inherited from objects further up in the device tree. These are visible above as Parent Tags.

Priority

Select a priority for the sensor. This setting determines where the sensor is placed in sensor lists. Top priority is at the top of a list. Choose from one star (low priority) to five stars (top priority).

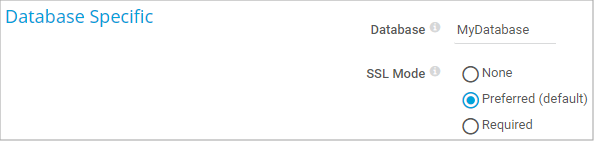

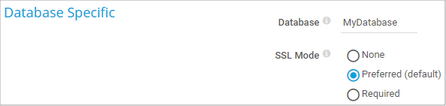

Database

Enter the name of the MySQL database to which the sensor connects. For example, such a database's name could be MyDatabase. This is a logical entity on the database server where database objects like tables or stored procedures exist.

The database name of a MySQL server also reflects a physical directory structure where your database objects are stored. Enter the appropriate string which is the same as you would supply when invoking the mysql.exe admin tool (with the command line switch -p) or after the login with mysql.exe with the command use.

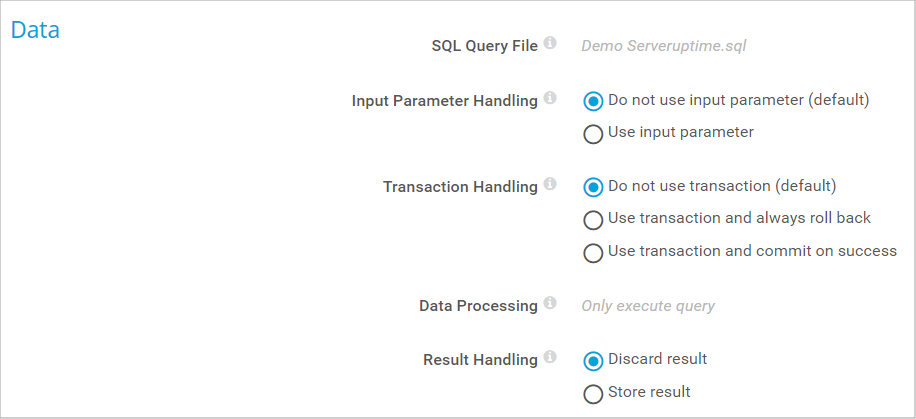

SQL Query File

Select an SQL script file that includes a valid SQL statement to execute on the server. Once a sensor is created, you cannot change this value. It is shown for reference purposes only. If you need to change this, please add the sensor anew.

The script will be executed with every scanning interval. The list contains SQL scripts from the database management system specific \Custom Sensors\sql subfolder of your PRTG installation. Store your script there. If used on a remote probe, the file must be stored on the system running the remote probe. If used on a cluster probe, you must store the file on all servers running a cluster node!

For more information on how to find this path, please see Data Storage section. By default, there is the demo script Demo Serveruptime.sql available that you can use to monitor the uptime of the target server.

For example, a correct expression in the file could be: SELECT AVG(UnitPrice) FROM Products. If you want to use transactions, separate the individual steps with semicolons ";".

Please be aware that with each request, the full result set will be transferred, so use filters and limits in your query.


You can use the following placeholders in your query file to have them replaced by an input parameter:

• Microsoft SQL, MySQL, PostgreSQL: @prtg
• Oracle SQL: :prtg
• ADO SQL: ? (question mark)

This is useful if you have various SQL sensors with queries that differ in only one parameter.

Use Input Parameter

Define if you want to pass a parameter to your SQL query file. This will replace the placeholder %prtg (Microsoft SQL, MySQL, PostgreSQL), or :prtg (Oracle SQL), or ? (ADO SQL) in the SQL query. Choose between:

• Don't use input parameter (default): Execute the SQL query file without using placeholders.
• Use input parameter: Execute an SQL query file that contains a placeholder. Provide the parameter you want to use in the query below.

Input Parameter

This field is only visible if you choose Use input parameter above. Enter the parameter you want to pass to the SQL query file. This parameter replaces the placeholder %prtg or :prtg or ? in the SQL query.

You can also use PRTG placeholders for custom sensors (command line parameters) as input parameter, for example, %sensorid or %deviceid. For details, see Application Programming Interface (API) Definition.

Provide strings as they are and do not surround them with quotation marks. PRTG will correctly insert string parameters into the query automatically.

Use Transaction

Define if you want to use transactions and if they will affect the database content. Choose between:

• Don't use transaction (default): No transactions will be executed.
• Use transaction and always rollback: Choose this option to ensure that no data in the database will be changed by the query. In the SQL query file, separate the single steps of the transaction with semicolons.
• Use transaction and commit on success: Choose this option to perform changes on the database with the query. The changes will only apply if all execution steps succeed without any errors. In the SQL query file, separate the single steps of the transaction with semicolons.

Data Processing

Define if you want to process data from the database. Once a sensor is created, you cannot change this value. It is shown for reference purposes only. If you need to change this, please add the sensor anew. Choose between:

• Just execute the query: If you select this option, the sensor will only show information about the number of affected rows and the execution time of the query. Affected rows are rows that were changed somehow with the query (for example, created, deleted, edited).
• Count table rows: Choose this option if you perform a SELECT statement and want to monitor how many rows of the data table this statement returns.
• Process data table: Select this option to read and analyze the queried data table. If you select this option, the sensor will count rows with SELECT statements as well.

Handle DBNull in Channel Values as

This setting is only visible if you select Process data table above. Define the sensor behavior if DBNull is returned by the query. Choose between:

• Error: The sensor will show a Down status if DBNull is reported.
• Number 0: The sensor will recognize the result DBNull as a valid value and interpret it as the number 0.

Select Channel Value by

This setting is only visible if you select Process data table above. Define how the desired cell in the database table will be selected. This is necessary to configure the cells that will be used in the sensor channels. Choose between:

• Column number: The channel value will be determined by using the value in row 0 of the column whose number you specify below.
• Column name: The channel value will be determined by using the value in row 0 of the column whose name you specify below.
• Row number: The channel value will be determined by using the value in column 0 of the row whose number you specify below.
• Key value pair: The channel value will be determined by searching in column 0 for the key you specify below and returning the value in column 1 of the same row where the key value was found.

The option you choose here also defines the method to optionally determine a value for the sensor message. For details, see setting Use Data Table Value in Sensor Message below.

Please see manual section Monitoring Databases for an example for channel value selection.

Sensor Channel #x

This setting is only visible if you select Process data table above. You can define up to 10 different channels for the data processing of this sensor. You have to define at least one data channel if you process the data table, so you will see all available settings for Channel #1 without enabling it manually. For all other possible channels, choose between:

• Disable: This channel will not be added to the sensor.
• Enable: This channel will be added to the sensor. Define the settings as described above.

Once a sensor is created, you cannot change this value. It is shown for reference purposes only. If you need to change this, please add the sensor anew.

Sensor Channel #x Name

This setting is only visible if you select Process data table above. Enter a unique name for the channel. Please enter a string. Channels will be generated dynamically with this name as identifier. Once a sensor is created, you cannot change this value. It is shown for reference purposes only. If you need to change this, please add the sensor anew.

Sensor Channel #x Column Number

This setting is only visible if you select Column number above. Provide the number of the column which will be used to determine the channel value in row 0. Please enter an integer value.

Sensor Channel #x Column Name

This setting is only visible if you select Column number above. Provide the name of the column which will be used to determine the channel value in row 0. Please enter a string.

Sensor Channel #x Row Number

This setting is only visible if you select Row number above. Provide the number of the row which will be used to determine the channel value in column 0. Please enter an integer value.

Sensor Channel #x Key

This setting is only visible if you select Key value pair above. Provide the key to search for in column 0 of the data table. The value in column 1 of the same row where the key value was found will be used to determine the channel value. Please enter a string.

Sensor Channel #x Mode

This setting is only visible if you select Process data table above. Define how to display the determined value in the channel. Once a sensor is created, you cannot change this value. It is shown for reference purposes only. If you need to change this, please add the sensor anew. Choose between:

• Absolute (recommended): Shows the value as the sensor retrieves it from the data table.
• Difference: The sensor calculates and shows the difference between the last and the current value returned from the data table.

Sensor Channel #x Unit

This setting is only visible if you select Process data table above. Define the unit of the channel value. Once a sensor is created, you cannot change this value. It is shown for reference purposes only. If you need to change this, please add the sensor anew. Choose between:

• BytesBandwidth
• BytesMemory
• BytesDisk
• Temperature
• Percent
• TimeResponse
• TimeSeconds
• TimeHours
• Count
• CPU
• BytesFile
• SpeedDisk
• SpeedNet
• Custom
• Value Lookup

For more information about the available units, please refer to the PRTG Application Programming Interface (API) Definition for custom sensors.

To use lookups with this channel, choose Value Lookup and select your lookup file below. Do not use Custom for using lookups with this sensor!

Sensor Channel #x Custom Unit

This setting is only visible if you select Custom above. Define a unit for the channel value. Please enter a string.

Sensor Channel #x Value Lookup

This settings is only visible if you select Value Lookup above. Select a lookup file that you want to use with this channel.

Use Data Table Value in Sensor Message

This setting is only visible if you select Process data table above. Define if the sensor message will show a value from the data table. Choose between:

• Disable: Do not use a custom sensor message.
• Enable: Define a custom sensor message with a defined value of the data table. Define the value selection below.

The method to determine a value for the sensor message is defined in setting Select Channel Value by above.

Sensor Message Column Number

This setting is only visible if you select Column number and Use Data Table Value in Sensor Message above. Enter the number of a column. The sensor message will show the value in row 0 of this column. Please enter an integer value.

Columns and rows start with index 0.

Sensor Message Column Name

This setting is only visible if you select Column name and Use Data Table Value in Sensor Message above. Enter the name of a column. The sensor message will show the value in row 0 of this column. Please enter a string.

Columns and rows start with index 0.

Sensor Message Row Number

This setting is only visible if you select Row number and Use Data Table Value in Sensor Message above. Enter the number of a row. The sensor message will show value in column 0 of this row. Please enter an integer value.

Columns and rows start with index 0.

Sensor Message Key

This setting is only visible if you select Key value pair and Use Data Table Value in Sensor Message above. Enter a key to search for in column 0 of the data table. The sensor message will show the value in column 1 of the row where the key has been found. Please enter a string.

Columns and rows start with index 0.

Sensor Message

This setting is only visible if you select Use Data Table Value in Sensor Message above. Define the sensor message. Please enter a string. Use the placeholder {0} at the position where the value will be added.

Example: The message is {0}

If Sensor Message Changes

Define what this sensor will do when the sensor value changes. You can choose between:

• Ignore changes (default): The sensor takes no action on change.
• Trigger 'change' notification: The sensor sends an internal message indicating that its value has changed. In combination with a Change Trigger, you can use this mechanism to trigger a notification whenever the sensor value changes.

Sensor Result

Define what PRTG will do with the sensor results. Choose between:

• Discard sensor result: Do not store the sensor result.
• Write sensor result to disk (Filename: "Result of Sensor [ID].txt"): Store the last result received from the sensor to the Logs (Sensor) directory in the PRTG data folder on the probe system the sensor is running on (on the Master node if in a cluster). File names: Result of Sensor [ID].txt and Result of Sensor [ID].Data.txt. This is for debugging purposes. PRTG overrides these files with each scanning interval.
  For more information on how to find the folder used for storage, see section Data Storage.


You cannot access stored logs of sensors that run on the local probe of PRTG on demand.

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel will always be displayed below the sensor's name. The available options depend on what channels are available for this sensor.

You can set another primary channel later by clicking the pin symbol of a channel in the sensor's Overview tab.

Graph Type

Define how different channels will be shown for this sensor.

• Show channels independently (default): Show an own graph for each channel.
• Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This will generate an easy-to-read graph that visualizes the different components of your total traffic.
  This option cannot be used in combination with manual Vertical Axis Scaling (available in the Sensor Channels Settings settings).

Stack Unit

This setting is only available if stacked graphs are selected above. Choose a unit from the list. All channels with this unit will be stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Scanning Interval

Select a scanning interval (seconds, minutes, or hours) from the list. The scanning interval determines the time the sensor waits between two scans. You can change the available intervals in the system administration on PRTG on premises installations.

If a Sensor Query Fails

Define the number of scanning intervals that a sensor has time reach and check a device again in case a sensor query fails. The sensor can try to re-reach and check a device several times, depending on the option you select here, before it will be set to a Down status. This helps you avoid false alarms if the monitored device has only temporary issues. For previous scanning intervals with failed requests, the sensor will show a Warning status. Choose between:

• Set sensor to "down" immediately: The sensor will show an error immediately after the first failed request.
• Set sensor to "warning" for 1 interval, then set to "down" (recommended): After the first failed request, the sensor will show a yellow warning status. If the following request also fails, the sensor will show an error.
• Set sensor to "warning" for 2 intervals, then set to "down": Show an error status only after three continuously failed requests.
• Set sensor to "warning" for 3 intervals, then set to "down": Show an error status only after four continuously failed requests.
• Set sensor to "warning" for 4 intervals, then set to "down": Show an error status only after five continuously failed requests.
• Set sensor to "warning" for 5 intervals, then set to "down": Show an error status only after six continuously failed requests.

Sensors that monitor via Windows Management Instrumentation (WMI) always wait at least one scanning interval until they show an error. It is not possible to set a WMI sensor to "down" immediately, so the first option will not apply to these sensor types. All other options can apply.

If a sensor has defined error limits for channels, it will always show a Down status immediately, so no "wait" option will apply.


If a channel uses lookup values, it will always show a Down status immediately, so no "wait" options will apply.

Inheritance for schedules, dependencies, and maintenance windows cannot be interrupted. The corresponding settings from the parent objects will always be active. However, you can define additional settings here. They will be active at the same time as the parent objects' settings.

Schedule

Select a schedule from the list. Schedules can be used to monitor for a certain time span (days, hours) every week. With the period list option it is also possible to pause monitoring for a specific time span. You can create new schedules and edit existing ones in the account settings.

Schedules are generally inherited. New schedules will be added to existing ones, so all schedules are active at the same time.

Maintenance Window

Specify if you want to set up a one-time maintenance window. During a "maintenance window" period, this object and all child objects will not be monitored. They will be in a paused state instead. Choose between:

• Not set (monitor continuously): No maintenance window will be set and monitoring will always be active.
• Set up a one-time maintenance window: Pause monitoring within a maintenance window. You can define a time span for a monitoring pause below and change it even for a currently running maintenance window.

To terminate a current maintenance window before the defined end date, change the time entry in Maintenance Ends field to a date in the past.

Maintenance Begins

This field is only visible if you enabled the maintenance window above. Use the date time picker to enter the start date and time of the maintenance window.

Maintenance Ends

This field is only visible if you enabled the maintenance window above. Use the date time picker to enter the end date and time of the maintenance window.

Dependency Type

Define a dependency type. Dependencies can be used to pause monitoring for an object depending on the status of another. You can choose between:

• Use parent: Pause the current sensor if the device, where it is created on, is in Down status, or is paused by another dependency.
• Select object: Pause the current sensor if the device, where it is created on, is in Down status, or is paused by another dependency. Additionally, pause the current sensor if a specific other object in the device tree is in Down status, or is paused by another dependency. Select below.
• Master object for parent: Make this sensor the master object for its parent device. The sensor will influence the behavior of the device, where it is created on: If the sensor is in Down status, the device will be paused. For example, it is a good idea to make a Ping sensor the master object for its parent device to pause monitoring for all other sensors on the device in case the device cannot even be pinged. Additionally, the sensor will be paused if the parent group of its parent device is in Down status, or if it is paused by another dependency.

Testing your dependencies is easy! Simply choose Simulate Error Status from the context menu of an object that other objects depend on. A few seconds later all dependent objects should be paused. You can check all dependencies in your PRTG installation by selecting Devices | Dependencies from the main menu bar.

Dependency

This field is only visible if the Select object option is enabled above. Click on the reading-glasses and use the object selector to choose an object on which the current sensor will depend.

Dependency Delay (Sec.)

Define a time span in seconds for a dependency delay. After the master object for this dependency goes back to Up status, PRTG will start monitoring the depending objects after this extra delayed. This can help to avoid false alarms, for example, after a server restart, by giving systems more time for all services to start up. Please enter an integer value.

This setting is not available if you choose this sensor to Use parent or to be the Master object for parent. In this case, please define delays in the parent Device Settings or in the superior Group Settings.

User Group Access

Define which user group(s) will have access to the object you're editing. A table with user groups and types of access rights is shown: It contains all user groups from your setup. For each user group you can choose from the following access rights:

• Inherited: Use the access rights settings of the parent object.
• None: Users in this group cannot see or edit the object. The object neither shows up in lists nor in the device tree. Exception: If a child object is visible to the user, the object is visible in the device tree, though not accessible.
• Read: Users in this group can see the object and review its monitoring results.
• Write: Users in this group can see the object, review its monitoring results, and edit the object's settings. They cannot edit access rights settings.
• Full: Users in this group can see the object, review its monitoring results, edit the object's settings, and edit access rights settings.

You can create new user groups in the System Administration—User Groups settings. To automatically set all objects further down in the hierarchy to inherit this object's access rights, set a check mark for the Revert children's access rights to inherited option.

For more details on access rights, please see the section User Access Rights.

Channel Unit Types

For each type of sensor channel, define the unit in which data is displayed. If defined on probe, group, or device level, these settings can be inherited to all sensors underneath. You can set units for the following channel types (if available):

• Bandwidth
• Memory
• Disk
• File
• Custom

Custom channel types can be set on sensor level only.
